Specifications
Compute
| APU |
dual-core Xtensa LX7, 240MHz 512 KB internal SRAM 384 KB ROM |
| Memory |
16MB (64Mbit) integrated SPI Flash 8MB integrated SPI PSRAM |
| Storage | microSD card slot |
Connectivity
| WiFi | 2.4GHz Wi-Fi (802.11 b/g/n) |
| Bluetooth | Bluetooth 5.0 LE (Unused) |
Controls
| Navigation Control | DPad |
| Game control |
A, B Start, Select |
| Emulation control | System, Option |
Display
| Type | SPI TFT |
| Size | 3.2 inch |
| Resolution | 240 x 320 |
| Color model | RGB |
| Brightness | Variable: 280 - 550 |
Audio
| Type | Mono |
| Wattage | 3 W |
Power
| Battery | 11 Whr (15 hours of emulation) |
| Charging | USB-C (5V, 1A) |

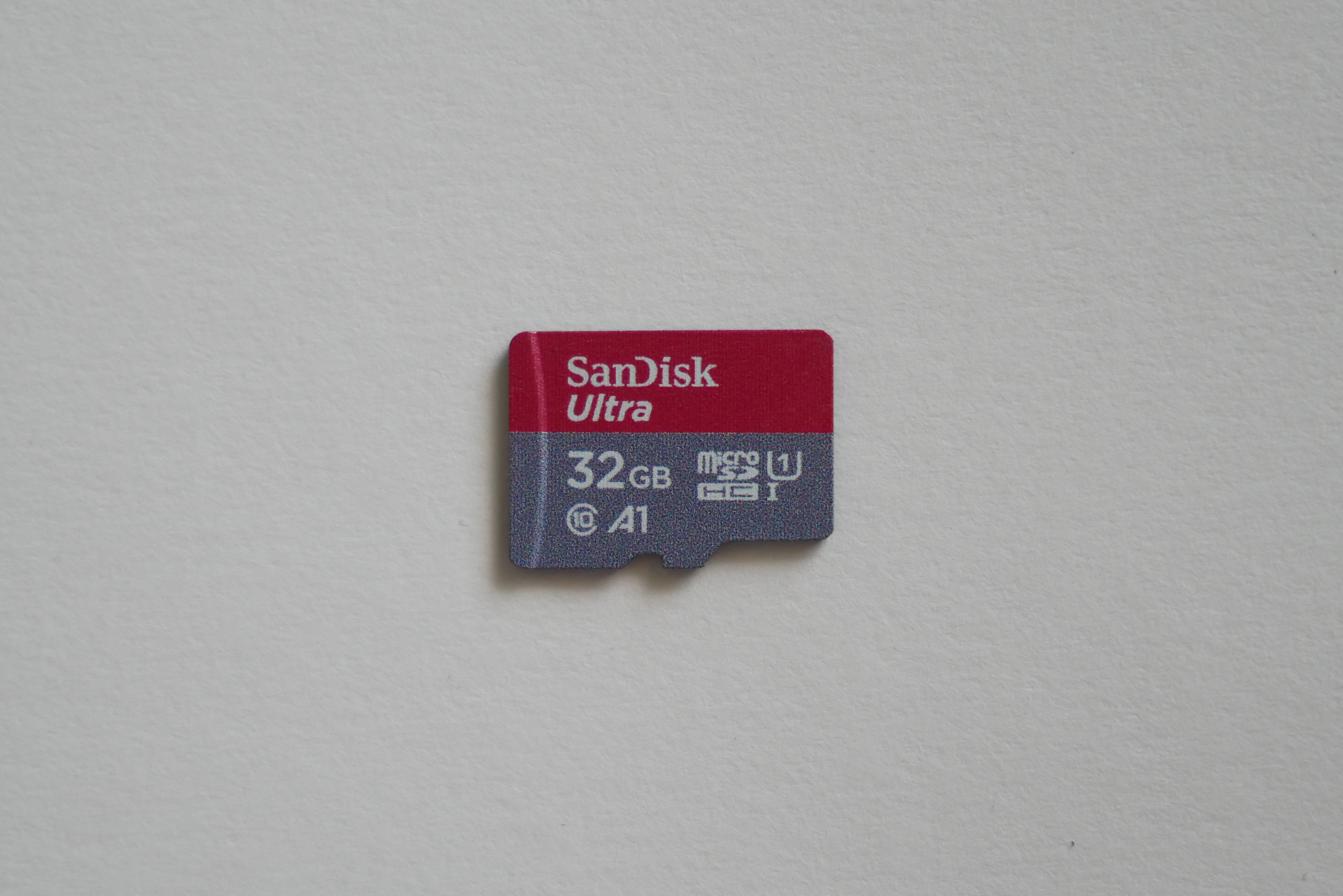

The games are stored on a microSD card. We recommend using the one above (Sandisk Ultra 32GB SDHC), since it was the primary card used during testing.
Click here to see more details of file storage on the device.

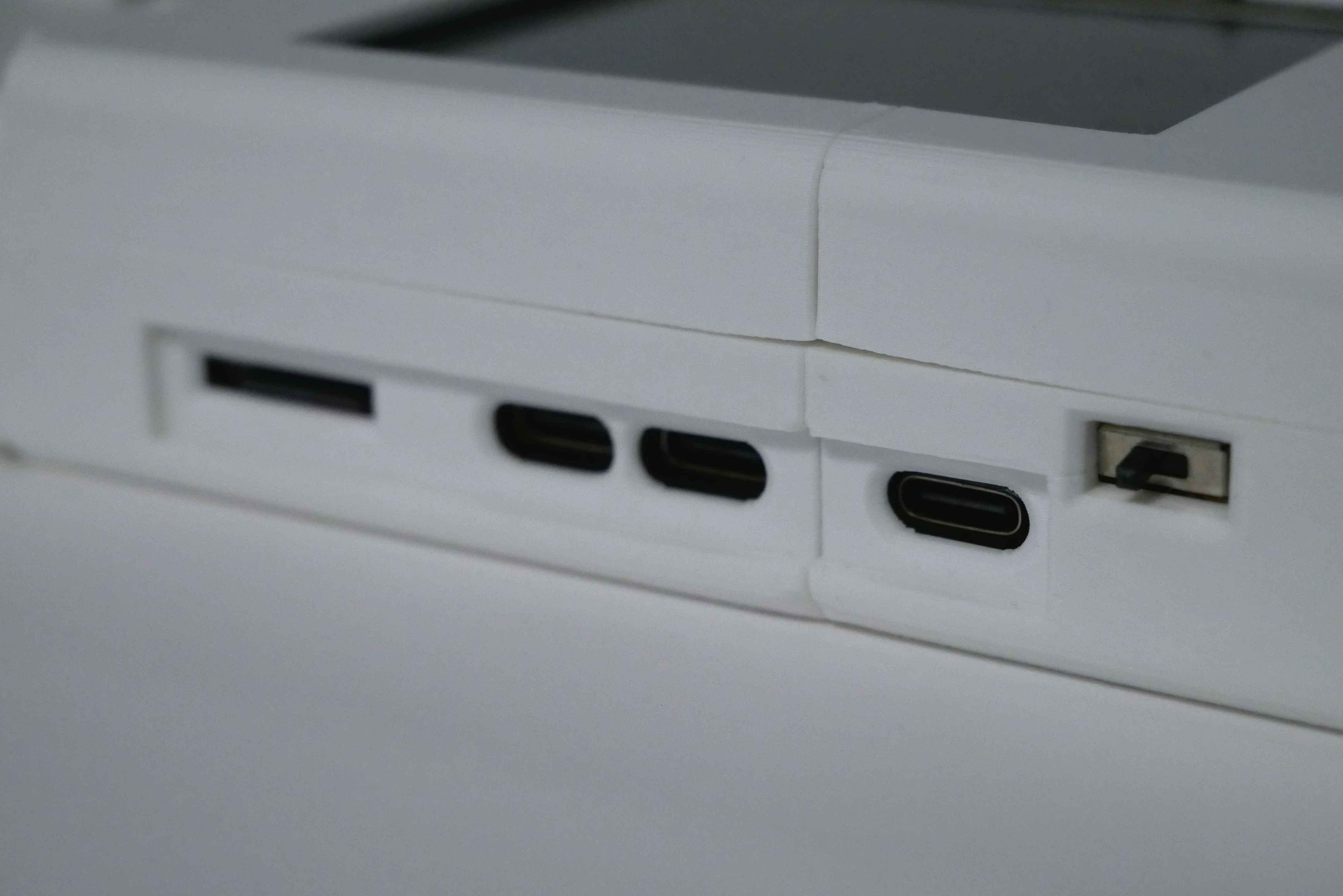

All 3 ports on the console, are USB type C receptacles. Do not charge the device with a powerful charger, as it can damage the battery. Plugging it into a laptop or powerbank is recommended.
